SIM7600E LTE HAT for Raspberry Pi (3G/2G/GNSS)
KShs15,000.00

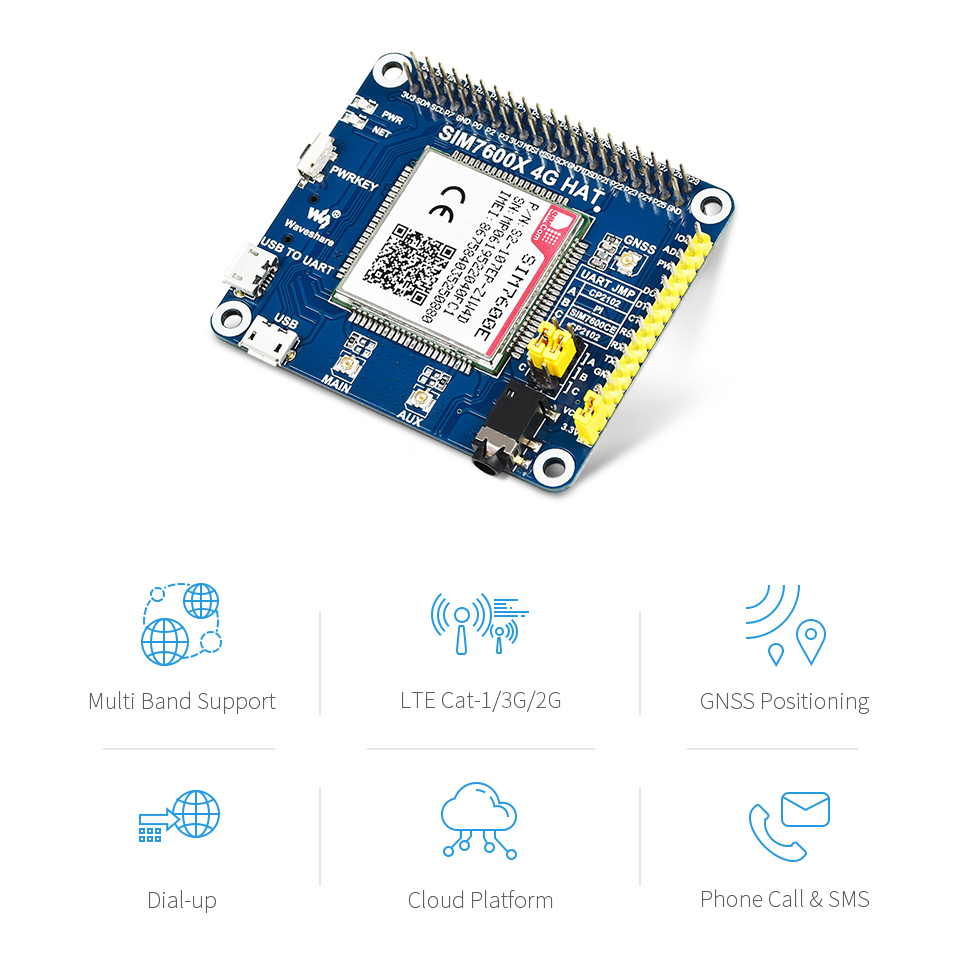

Feature Packed LTE CAT-1 HAT For Raspberry Pi – Enabling LTE Cat-1/3G/2G Communication & GNSS Positioning
Features At A Glance
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, LBS base station positioning
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Ard/STM32
- SIM card slot, supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- Onboard audio jack and audio decoder for making telephone call
- 2x LED indicators, easy to monitor the working status
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
See Below the GORY Details.
5 in stock
Specifications:
| LTE CAT-1/3G/2G | |
|---|---|
| LTE Cat-1 | LTE-TDD: B38 / B40 / B41 |
| LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 | |
| 3G | UMTS / HSPA +: B1 / B5 / B8 |
| 2G | GSM / GPRS / EDGE: 900 / 1800 MHz |
| GNSS | |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | -159 dBm (GPS) / -158 dBm (GLONASS) / -159dBm (BeiDou) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix (open air) | Cold starts: <35s |
| Hot starts: <1s | |
| SMS AND AUDIO | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| OTHER | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 56.21mm × 65.15mm |
Features
Standard Raspberry Pi 40PIN GPIO
Compatible With Raspberry Pi Series Boards, Jetson Nano
Dial-Up On Windows/Linux
LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink)
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink)
Cloud Communication
Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS
GNSS Positioning
Supports GPS, BeiDou, Glonass, LBS Base Station Positioning
Telephoto Call & SMS Support
Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack
What’s On Board

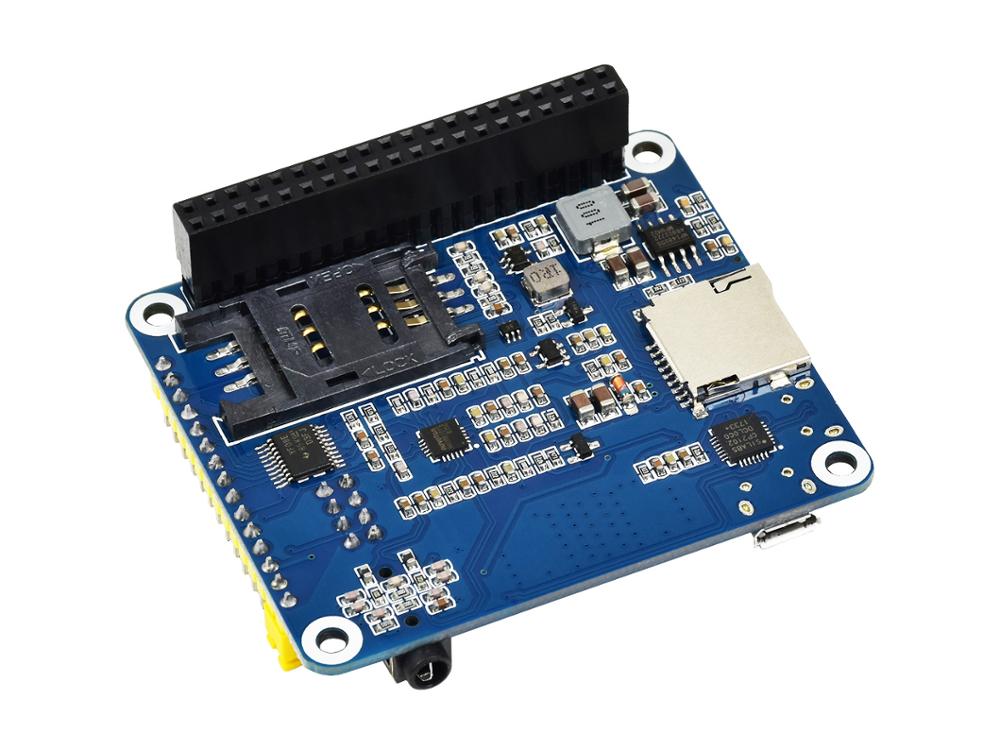

Upper Side:
- SIM7600E
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator
- translates 3.3V/5V into 1.8V
- MP2128DT power chip
- MP1482 power chip
- Raspberry Pi GPIO header
- for connecting with Raspberry Pi
- SIM7600 control interface
- for connecting with host boards like Ard/STM32
- SIM card slot
- supports 1.8V/3V SIM card
- TF card slot
- for storing data like files, messages, etc.
- 3.5mm earphone/mic jack
- for audio actions like making telephoto call

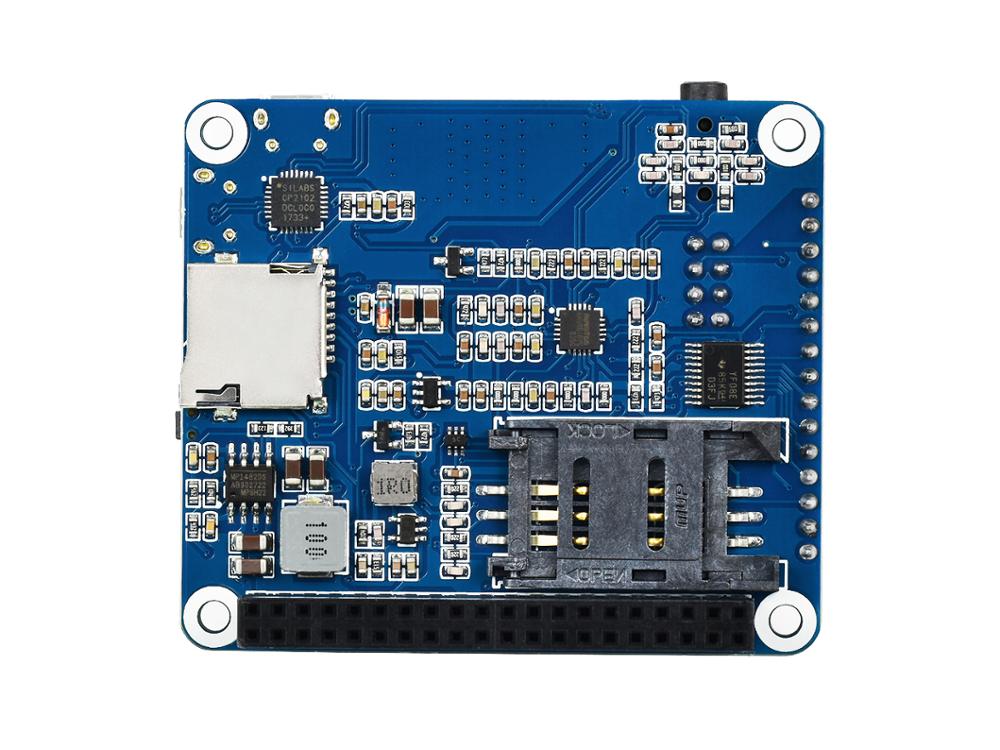

Bottom Side:
- USB interface
- for testing AT Commands, getting GPS positioning data, etc.
- USB TO UART interface
- for serial debugging, or login to Raspberry Pi
- MAIN antenna connector
- AUX antenna connector
- GNSS antenna connector
- Module power switch
- Network status indicator
- Power indicator
- Operating voltage selection jumper
- VCCIO – 3.3V: set operating voltage as 3.3V
- VCCIO – 5V: set operating voltage as 5V
- UART selection jumper
- A: Access Raspberry Pi via USB to UART
- B: Control the SIM7600 by Raspberry Pi
- C: Control the SIM7600 via USB to UART
Pinout Definition
Outline Dimensions
Package Includes:
Weight: 0.25 kg
- SIM7600E LTE Cat-1 HAT x1
- LTE Antenna x1
- GPS External Antenna (B) x1
- USB-A to Micro-B cable x2
- RPi screws pack (2pcs) x1
