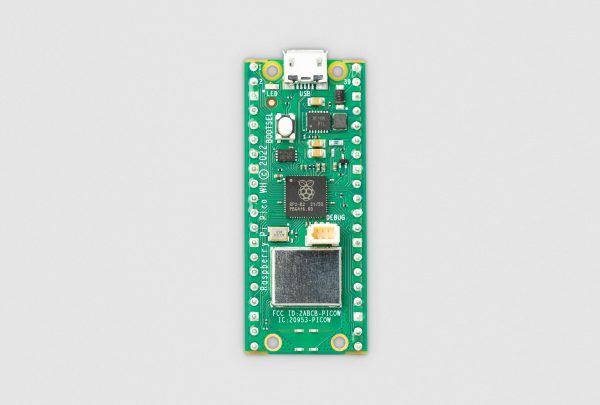

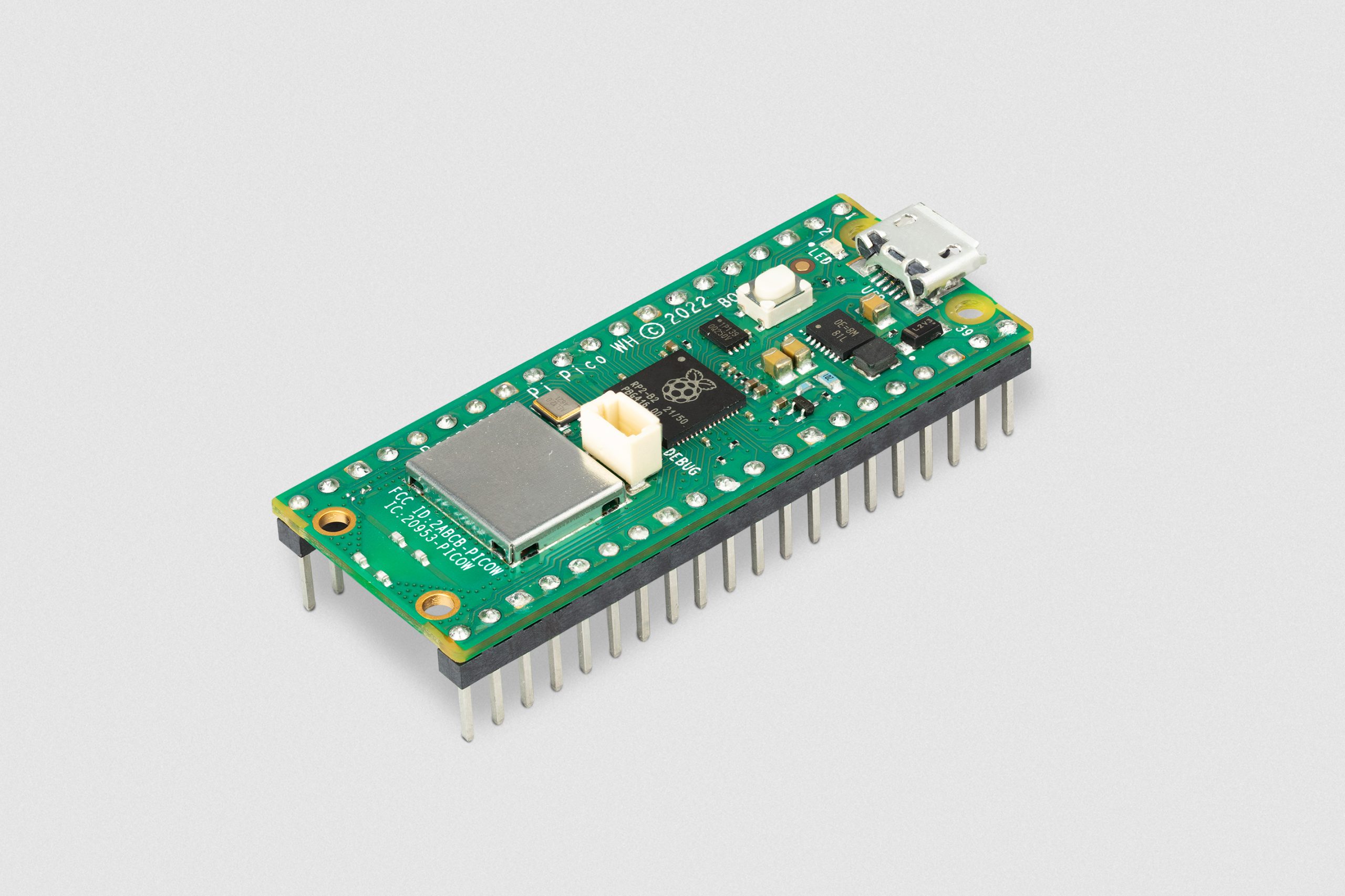

Raspberry Pi Pico WH


Raspberry Pi Pico is a tiny, fast and versatile board that is built with RP2040, a new microcontroller chip designed by Raspberry Pi in the UK. The Pico WH adds wireless connectivity as well as presoldered headers to the list of impressive features packed in this tiny micro-controller. The Pico WH offers a fully certified module on board featuring 2.4GHz 802.11n wireless LAN. As such the Raspberry Pi Pico WH can now be used in many everyday operations such as controlling appliances and operating a light display among other uses with the added advantage of wireless connectivity. Just like the standard Pico it is programmable in MicroPython and C, making it adaptable to a wide range of applications and skill levels. Getting started is just as easy as dragging and dropping a file.

Experts can take advantage of Pico’s rich peripheral set including SPI, 12C and 8 Programmable I/O (PIO) state machines to customize peripheral support.

44 in stock


  1. 21 mm × 51 mm form factor
  2. Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
  3. 264kB on-chip SRAM
  4. 2MB on-board QSPI flash
  5. 2.4GHz 802.11n wireless LAN (Raspberry Pi Pico W and WH only)
  6. 26 multifunction GPIO pins, including 3 analogue inputs
  7. 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
  8. 1 × USB 1.1 controller and PHY, with host and device support
  9. 8 × Programmable I/O (PIO) state machines for custom peripheral support
  10. Supported input power 1.8–5.5V DC
  11. Operating temperature -20°C to +70°C
  12. Castellated module allows soldering direct to carrier boards
  13. Low-power sleep and dormant modes
  14. Accurate on-chip clock
  15. Temperature sensor
  16. Accelerated integer and floating-point libraries on-chip
  17. Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2
